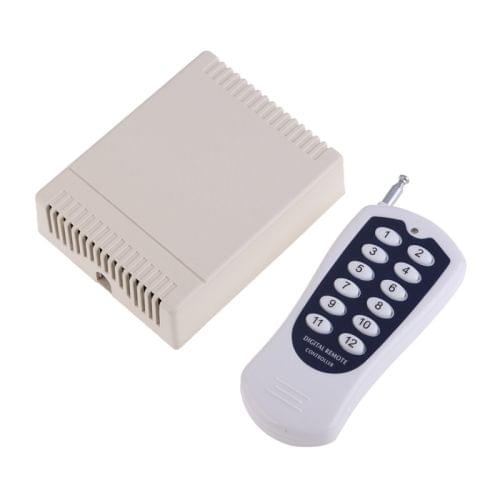

DC 12V 12CH Channel Wireless RF Remote Control Switch Transmitter+ Receiver

Features
1. Wireless control, easy to install.
2. Control Lights, Motors, Fans, electrically operated, Doors / Locks / Windows / Blinds / Cars or Other Appliances with AC180~250V.
3. You can turn on / off the receiver with transmitter (remote control) from any place within a reliable distance. The wireless RF signal can pass through walls, floors and doo
4. This switch can learn different coding remote controls (such as 2262, 1527)
5. One / several transmitters can control one / several receivers simultaneously.
6. If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it will not affect each other.
7. The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.

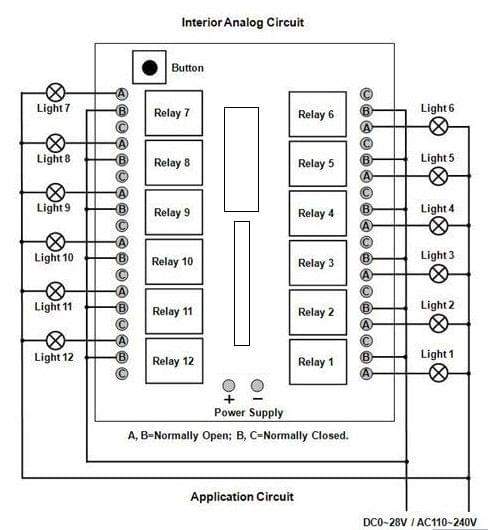

Output/working way
1. Jog, Inter-lock, Self-lock (can be change on yourself)
2. Jog --- Press one button is ON. Loosen your finger on the same button is OFF. (Need one channel switch and one buttons remote control)
3. Self-lock --- Press one button for one time is ON. Press the same button again is OFF. (Need one channel switch and one buttons remote control)
4. Inter-lock --- Press one button is ON, press another button is OFF. (Need one channel switch and 2 buttons remote control)

About Learning and clearing
1. Jog / signal non-lock a?? Press the No.1 button to learn
2. Self-lock press the No. 3 button to learn (each channel is independent, they will not interfere with each other.
3. Inter-lock a?? Press the No.2 button to learn.
4. 1-4 button is Self-lock. 5-12 button is Inter-lock --- Press the No.8 button to learn.
5. 1-6 button is Jog, 7-12 button is Inter-lock --- Press the NO.4 button to learn.
6. 1-6 button is Jog, 7-12 button is Self-lock --- Press the NO.5 button to learn.
7.1-4 button is Jog, 5-12 button is Inter-lock ---- Press No.6 button to learn.
8.1-4 button is Jog, 5-12 button is Self-lock ---- Press NO.7 button to learn.

Please note that
It is the control system in set here. You just can choose Jog or Self-lock working / output way here. There are 12CH and 12 buttons.

How to match
1. Press the learning the key on the receiver about 2 seconds, you will hear sound BIBI, it means into the learning state.
2. Press the remote control function keys (keys 1-8), you will hear BIBIBI sound. It means success in learning. Valid signal is not received within 10 seconds automatically exit learning.

How to remove code
1. Press the receiver module learning button about 8 seconds until BI continuous ringing six times, it means the stored information has been successfully cleared.
