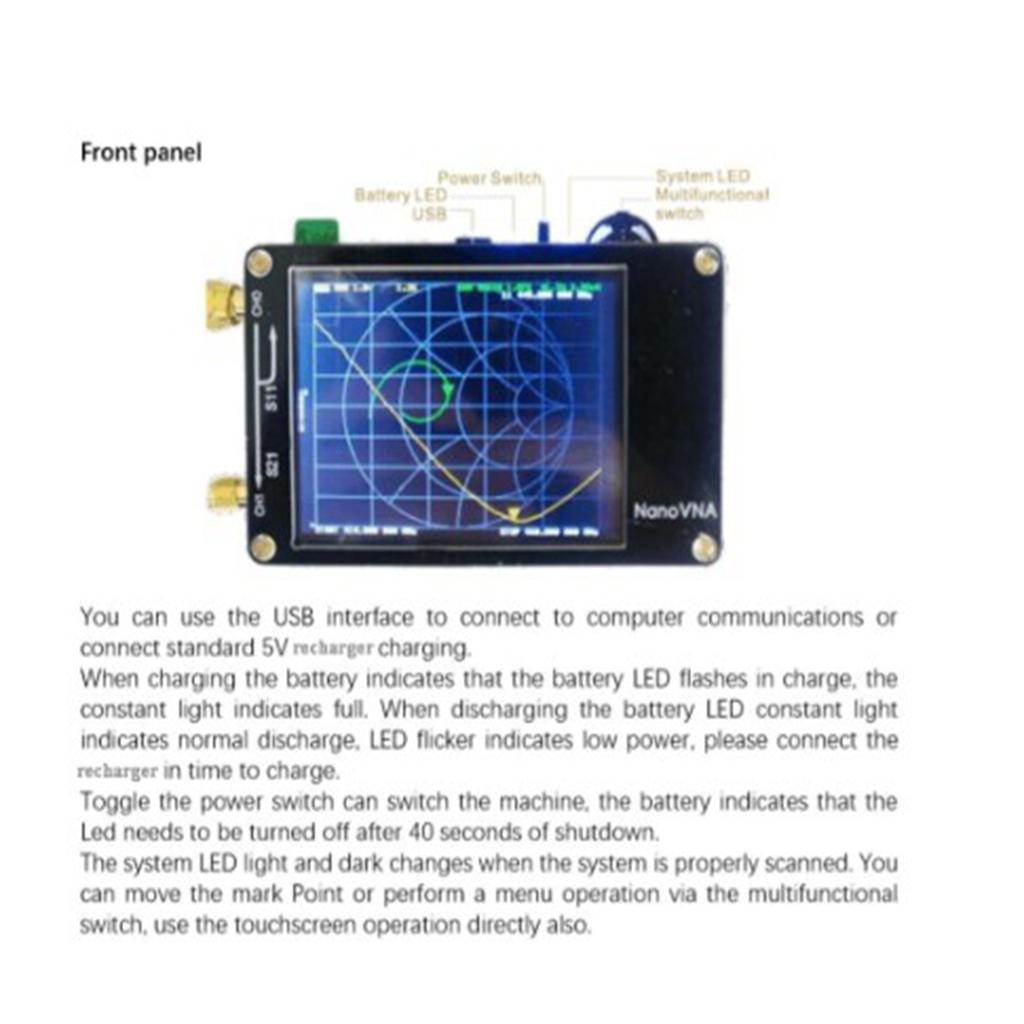

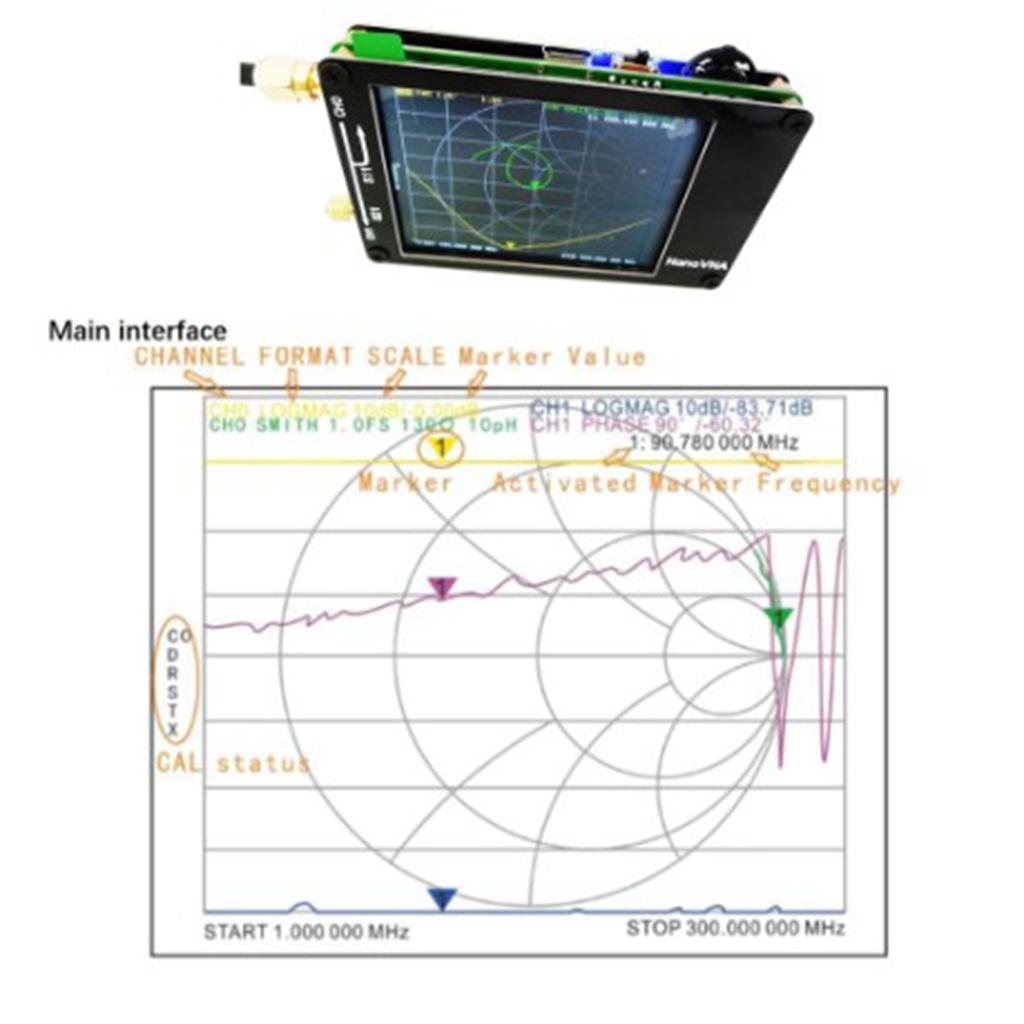

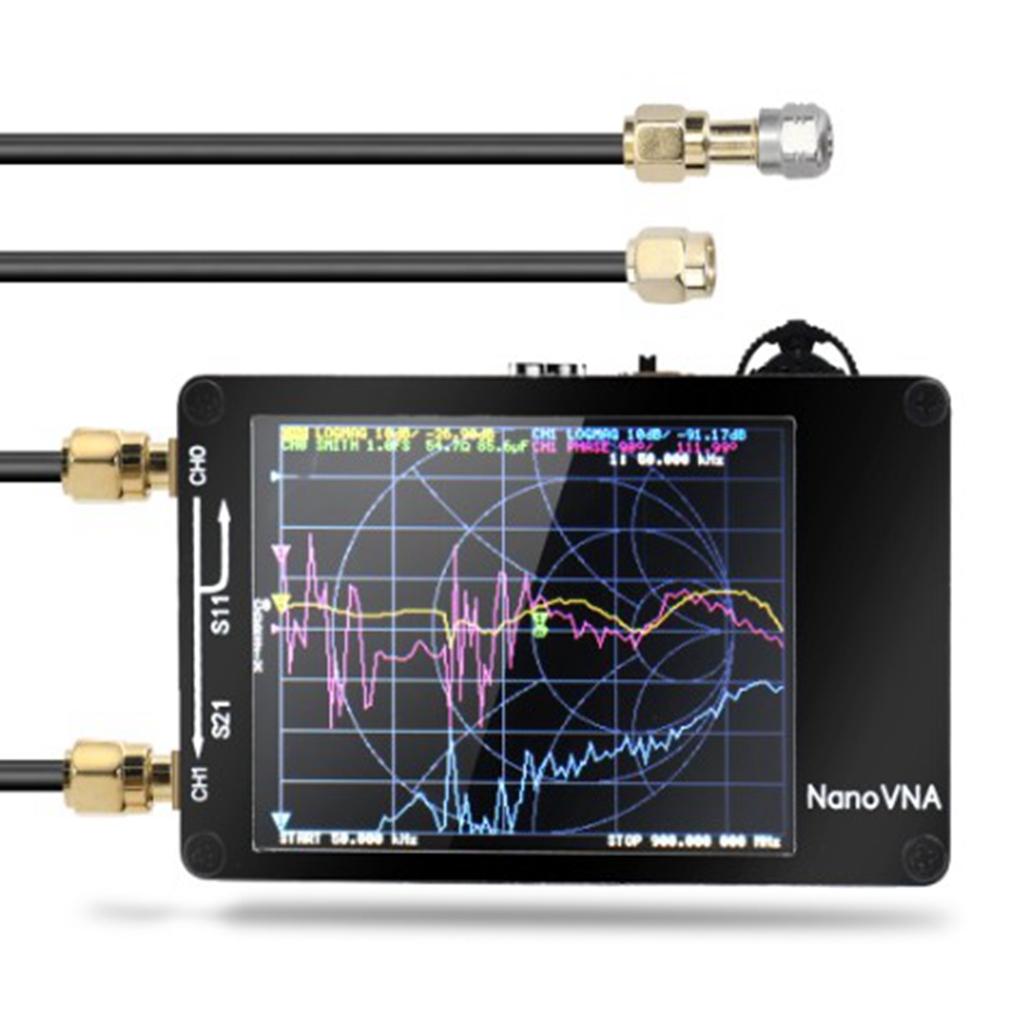

Vector Network Analyzer Digital Touching Screen Shortwave Antenna Analyzer

Description:

The PC control software can export Touchstone (snp) files, which can be used for various radio design and simulation software.
The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz.
The metal shield is designed to reduce the external interference and improve the measurement accuracy.
The 50k-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic.
The extended 300M-600MHz band provides better than 50dB of dynamics, and the 600M-900M band is better than 40dB of dynamics.

Specification:

Measurement frequency: 50KHz~300MHz (50KHz~900MHz, enable extended firmware)(the products will be updated with the latest firmware before shipping, the actual measurement frequency is 50KHz~900MHz)
RF output: -13dbm (maximum -9dbm)
Frequency accuracy:<0.5ppm
Measurement range: 70dB(50KHz-300MHz), (50dB(300M-600MHz), 40dB(600M-900MHz) enable extended firmware)
Port SWR:<1.1
Display: 2.8inch TFT (320*240)
USB interface: USB type-C
Communication mode: CDC (serial)
Power: USB 5V 120mA, can use battery powered(battery not included)
Number of calibration points: 101 (fixed)
Number of scanning points: 101 (fixed)
Display tracking: 4, Marking: 4, Setting save: 5
PCB size: 85.5x54x11mm/3.4x2.1x0.4in(without connectors and switches)

Package Includes:

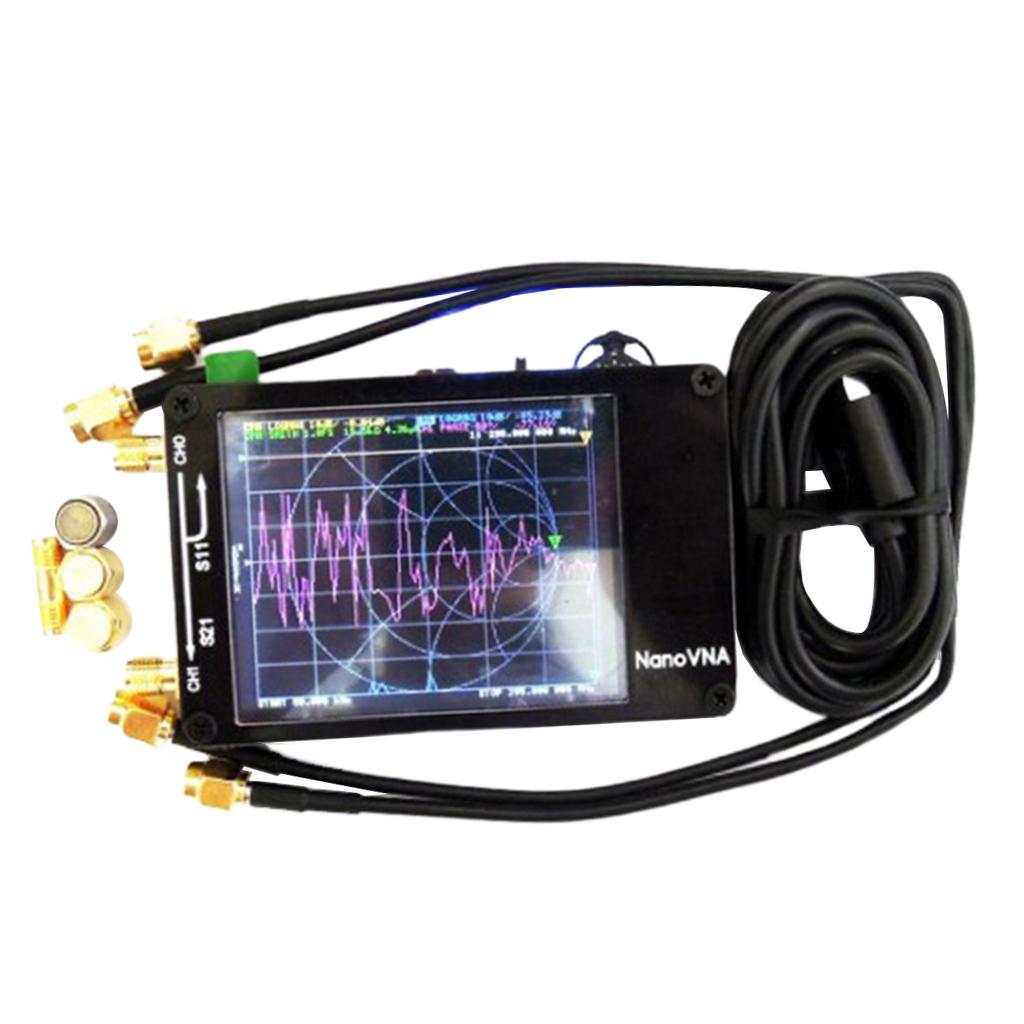

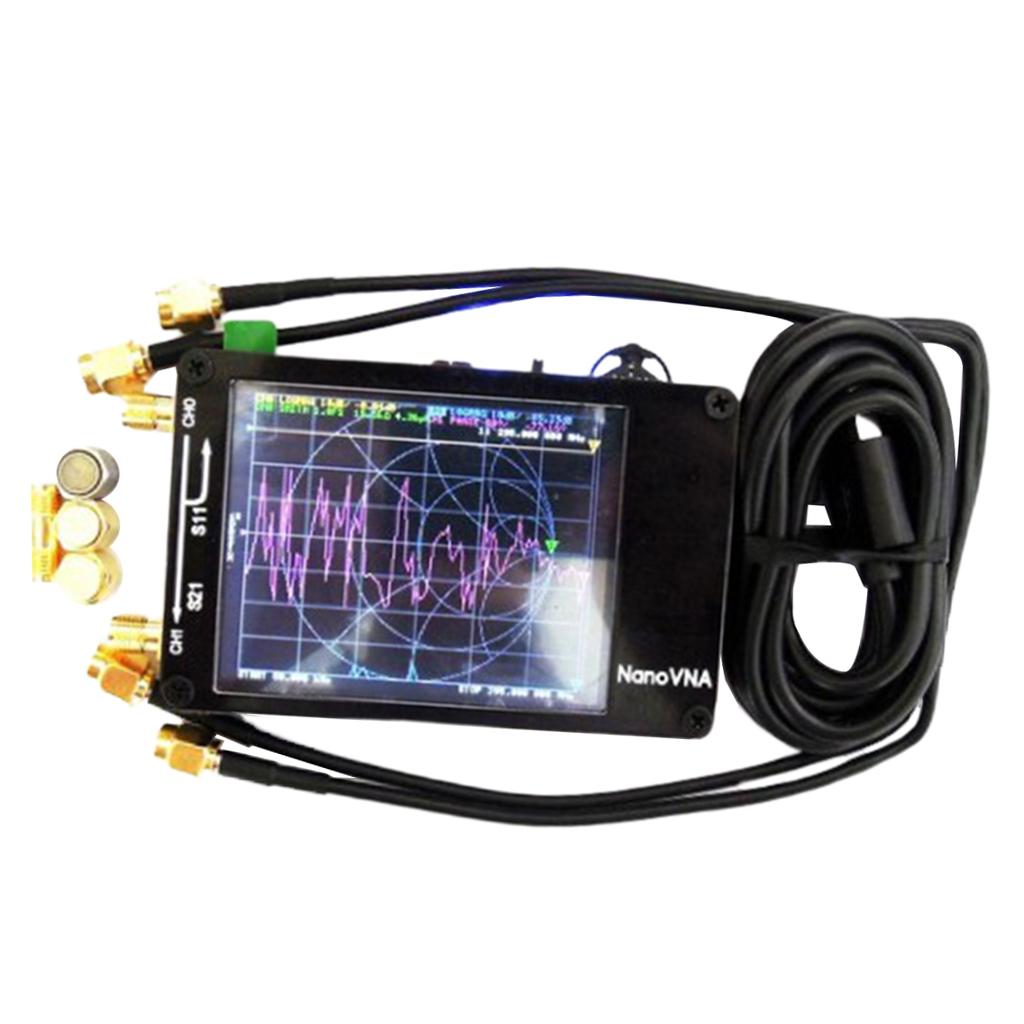

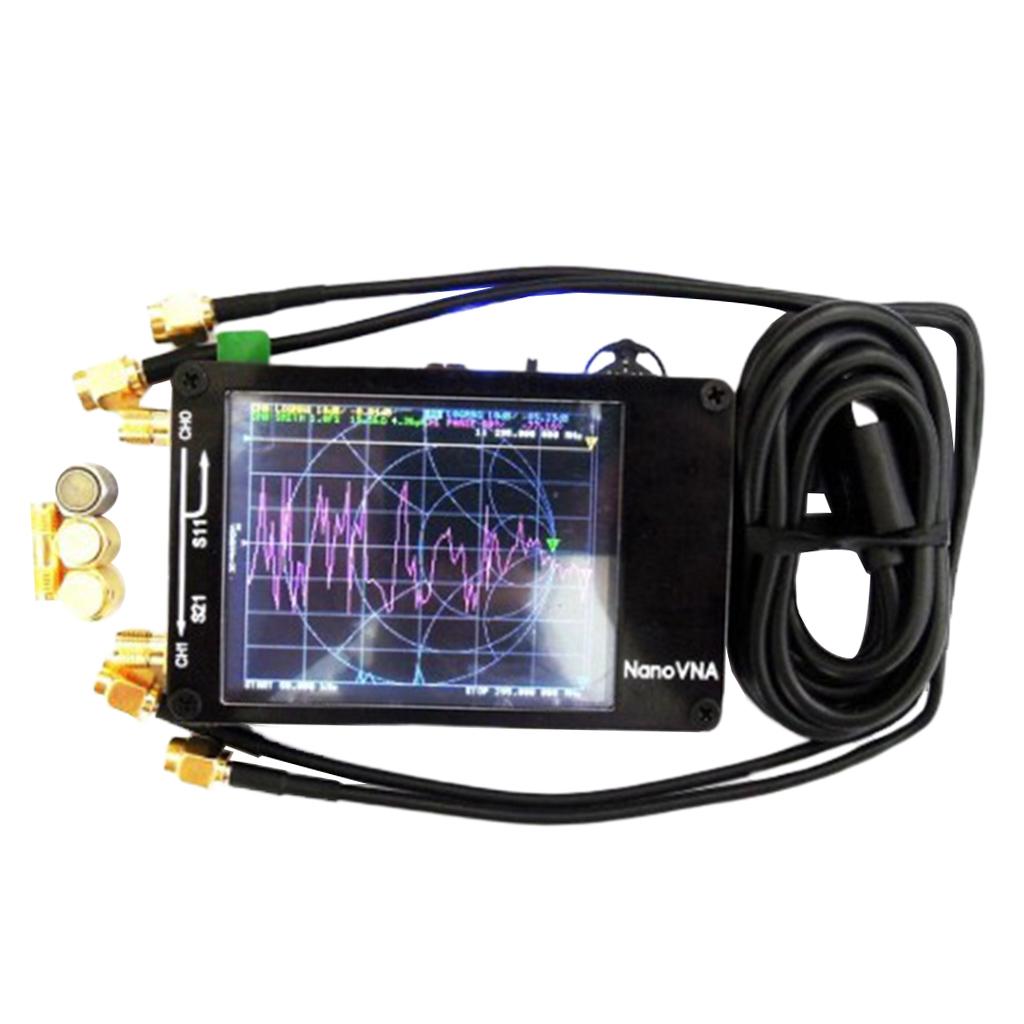

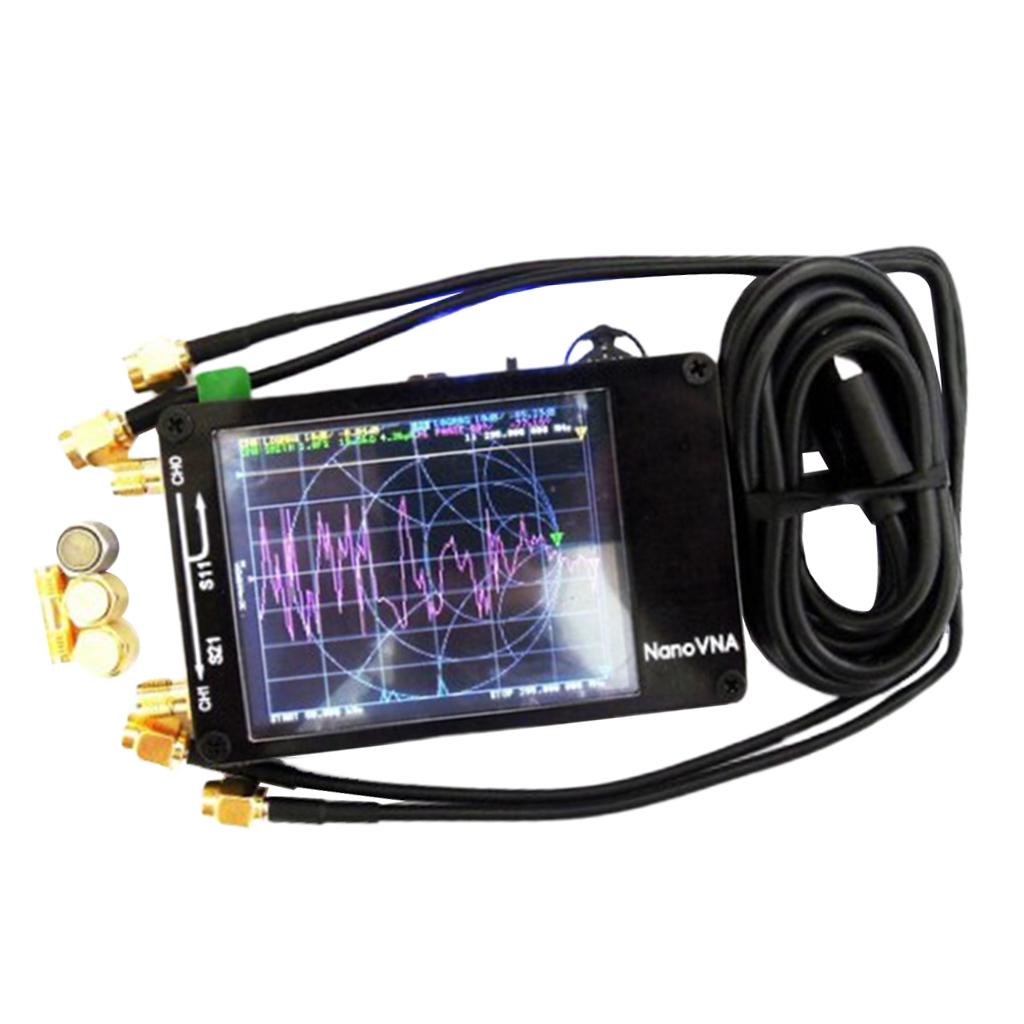

1 Piece Host
1 Piece USB Type-C Data Cable
2 Pieces 30mm SMA Male to Male Cable
1 Piece SMA Female to Female Connector

Note:

Batteries are not included because of the safety of international transportation. But we have reserved a power management IC, you can weld your own batteries. Or use other power sources, such as power bank, to supply power to it through USB interface.
