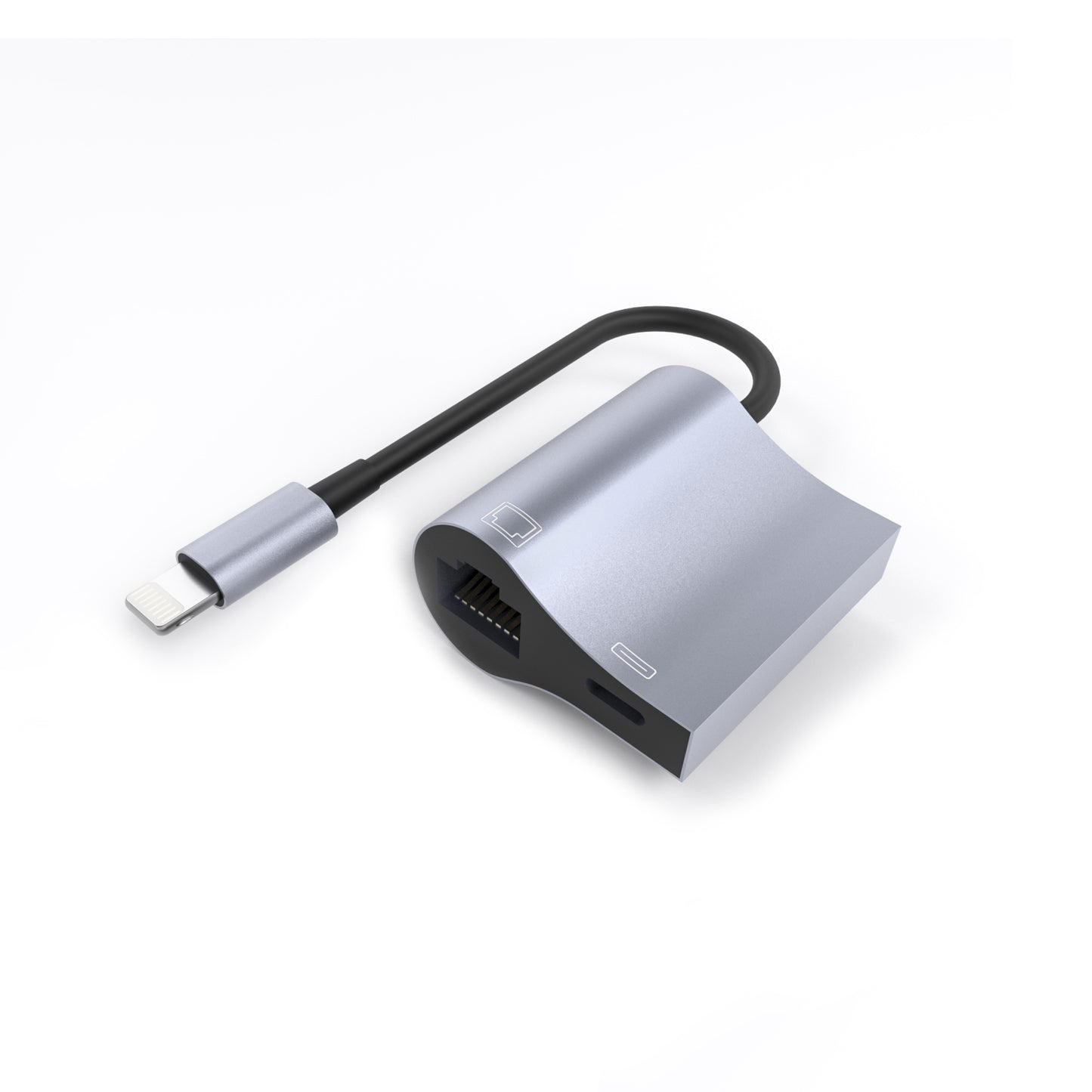

NK-1054 Lightning to RJ45 Ethernet Adapter with Lightning Female Charging Port for iPhone iPad iPod Touch

The Lightning to Ethernet adapter is an extremely fast Internet access device specially developed to solve iPhone/iPad/iPod Touch device usage data and WIFI interruption. Through the RJ45 interface, for iPhone/iPad/iPod Touch can be connected to the Ethernet to achieve continuous streaming. Go online at extremely fast speeds, and charge the device through the Lightning base when you are online.

• Using the RJ45 port, you can easily get the ultimate pleasure of surfing the Internet without buffering, grabbing red envelopes without delay, and playing games without freezing

• Solve the problem that some iPhone devices cannot be charged at the same time when using OTG accessories

Ethernet operation:

• 1: Disable WIFI and data in the IOS device settings and insert the adapter connected to the network cable

• 2: Open the settings, find the "Ethernet" option (if this option does not pop up, please unplug and plug the adapter again), click to enter "Ethernet", click "USB10/100LAN", when the address is obtained from the "Router", you can surf the Internet; While performing the above operations on the adapter, you can plug in the Lightning-USB charging cable to charge the device

Specification:

• Working voltage: 3.3V-4.0V

• Lightning working current: ?100mA

• RJ45 Ethernet interface: support 10/100LAN routing network cable

• Lightning charging current: 500mA-2100mA

• Compatibility: Compatible with IOS10.1 and higher versions of Lightning interface iOS devices

Note:

• Actual use current and transmission speed are different due to different types of equipment and accessories.

• This adapter cannot dial-up Internet by itself. You need to connect your network cable through the router device to automatically provide IP through the DHCP service.

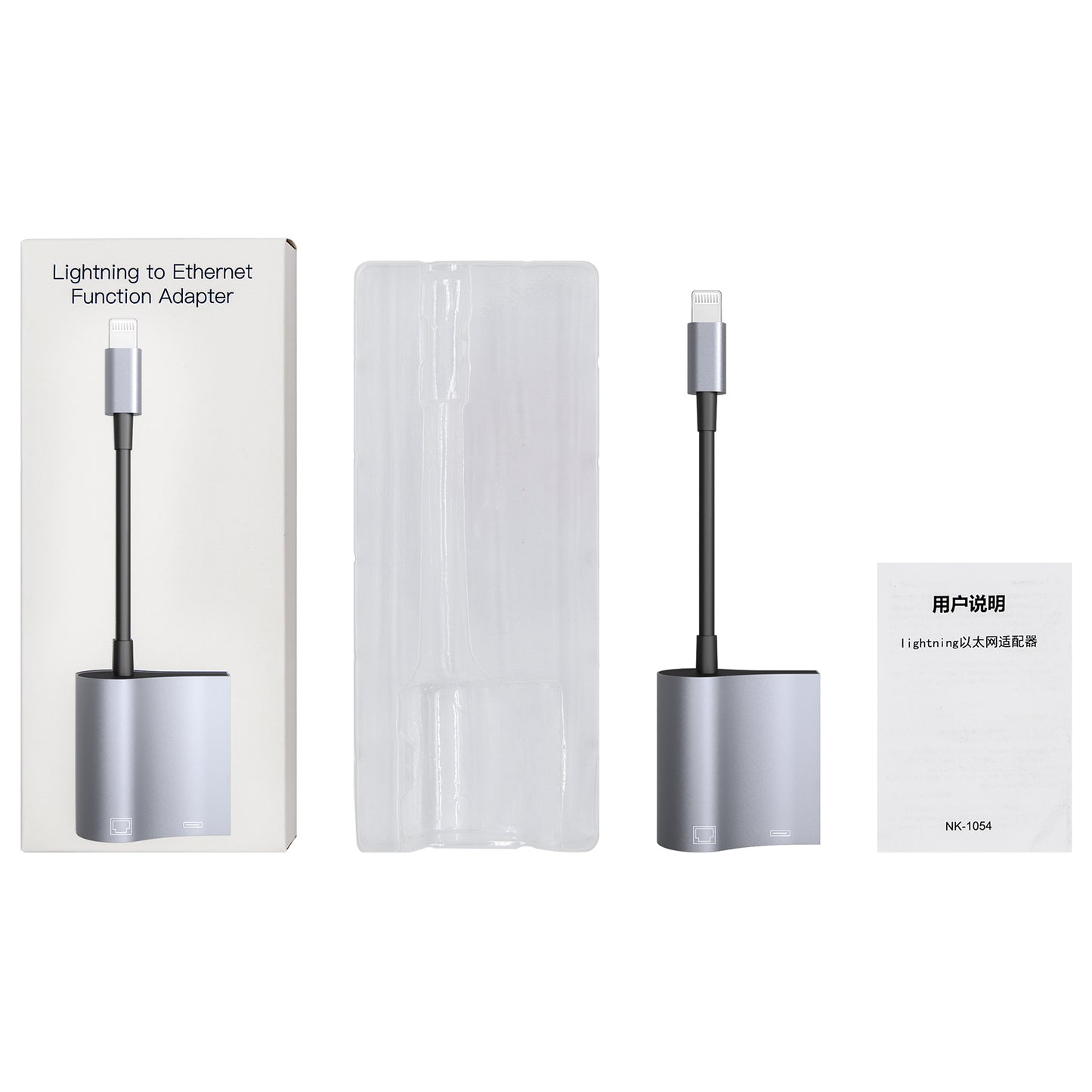

Package included:

• 1 x Lightning to RJ45 Ethernet Adapter

• 1 x English and Chinese User Manual
