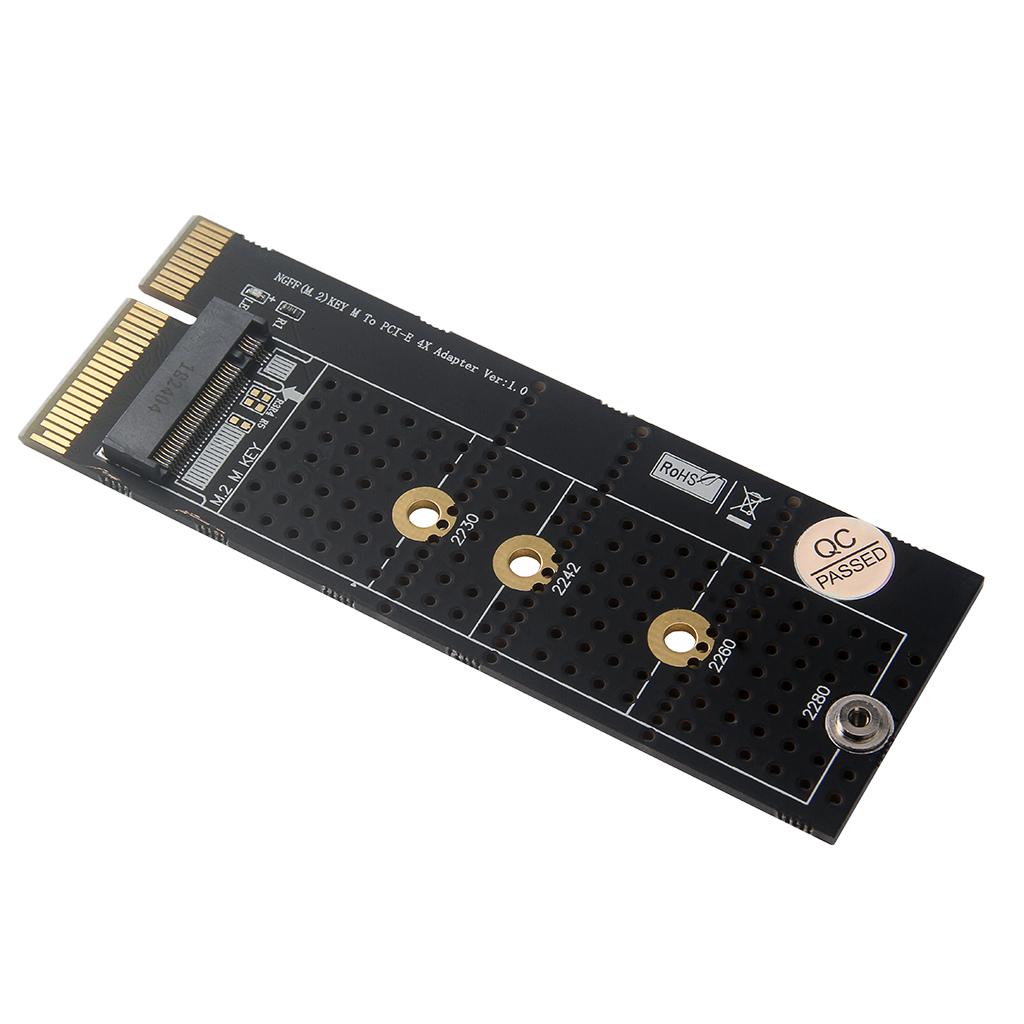

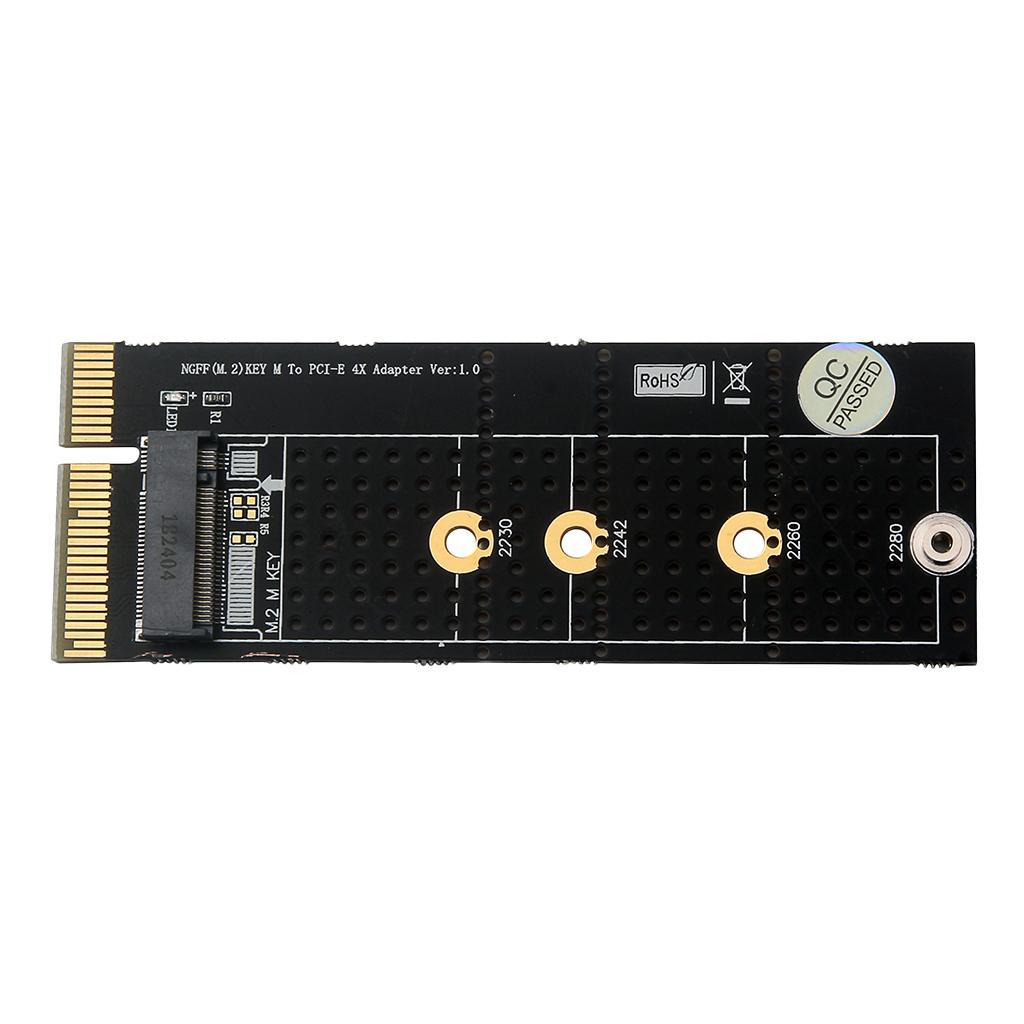

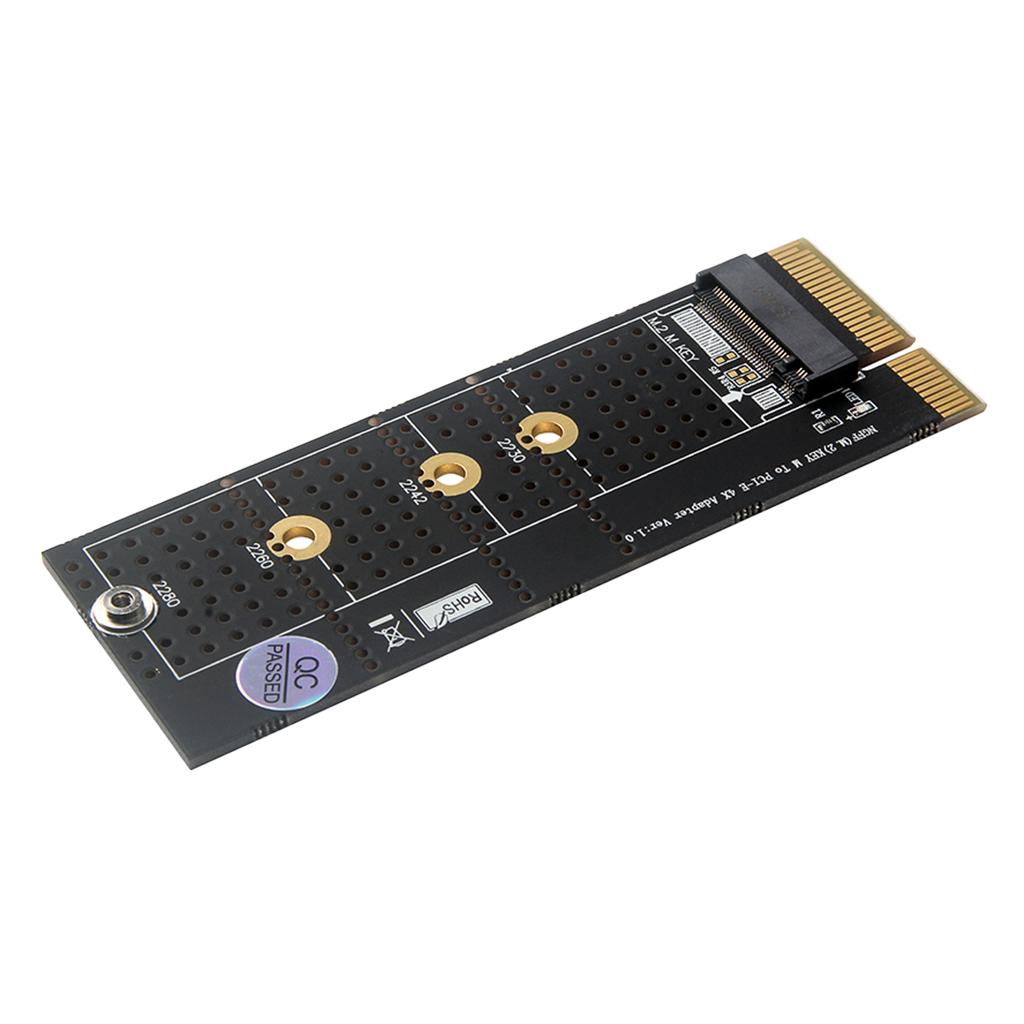

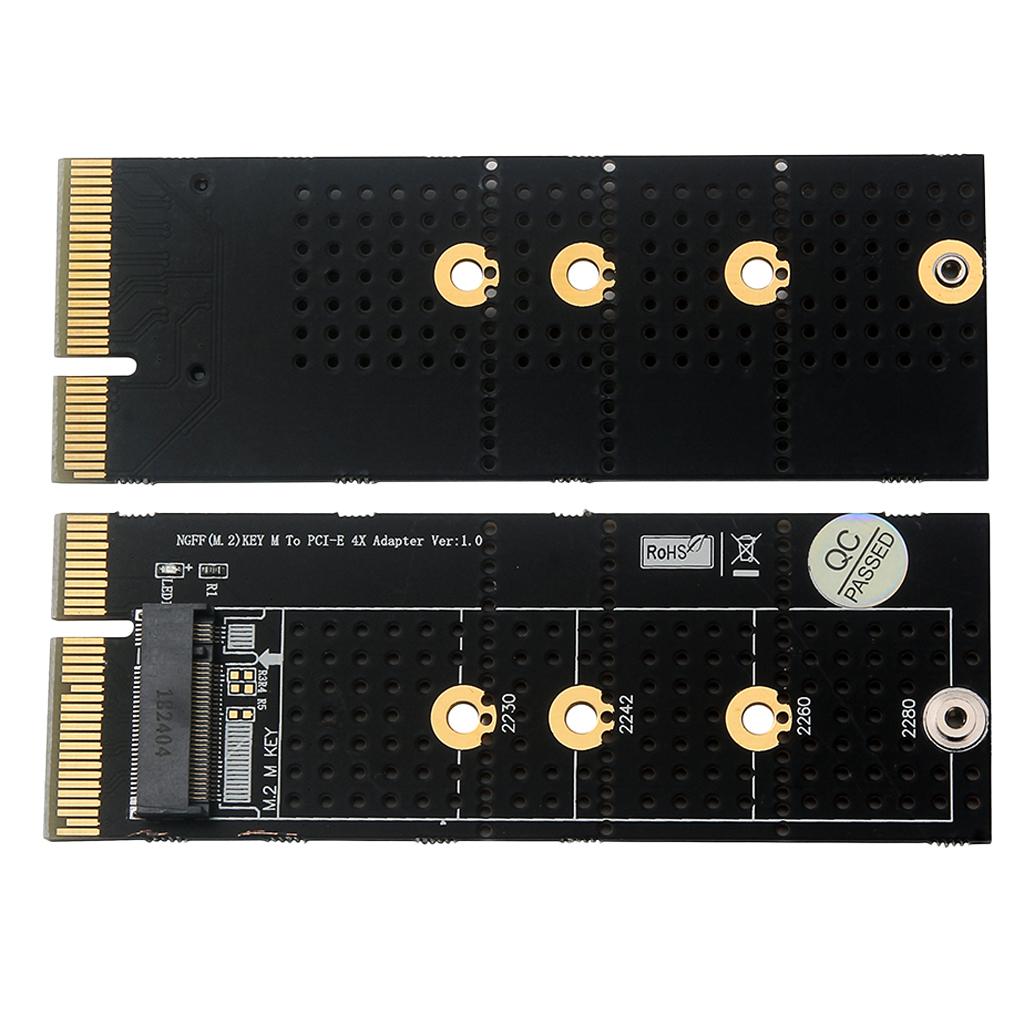

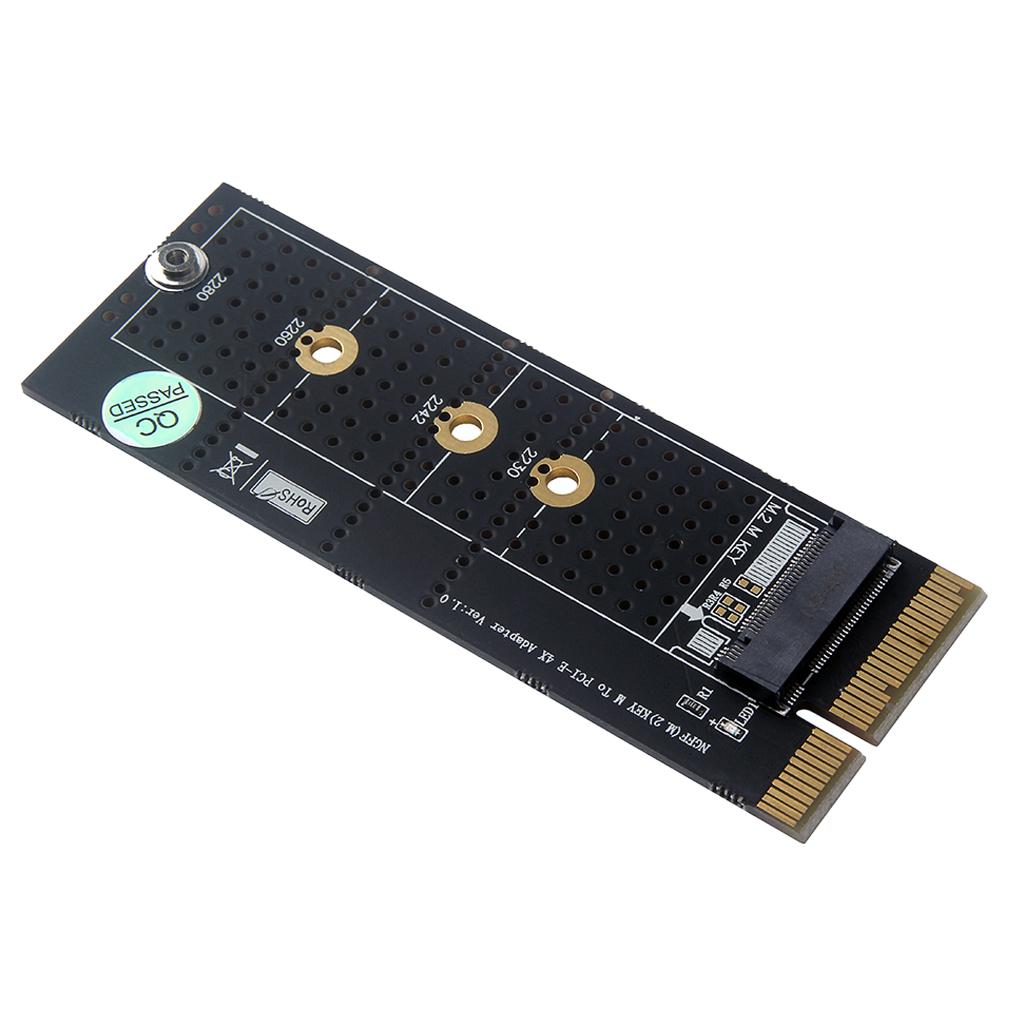

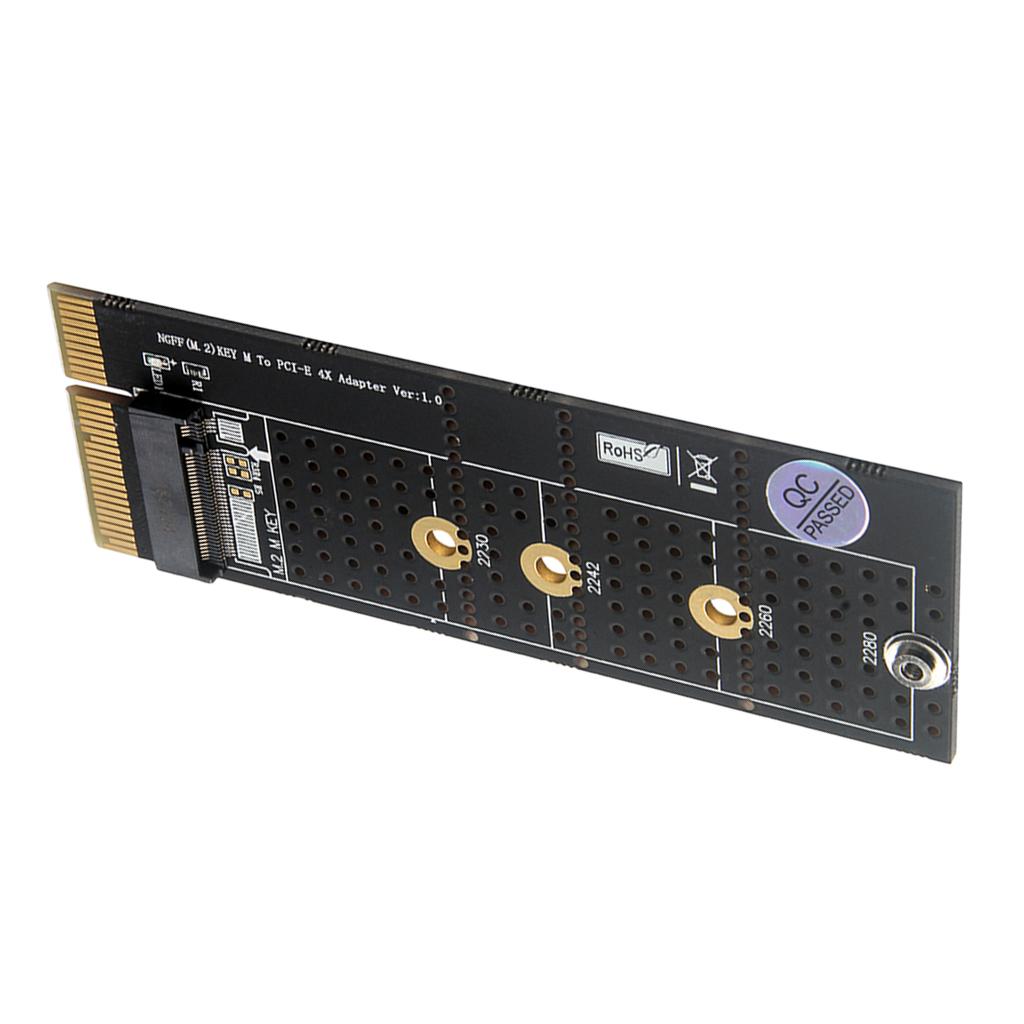

M.2 NVME SSD NGFF to PCI-E X4 Adapter M Key Interface Card Adapter

Description:

NGFF(M.2) NVME M key SSD to PCI-E 4X Adapter(vertical installation).

Allows user to use standard M.2 M-Key NVME SSD to PCI-E x4/x8/x16 slot of the Desktop PC, But speed at 4X speed only.

Support M.2 Socket 3 PCI-e-based M Key SSD (Don't support M.2 SATA bus B key SSD).

Support devices: Various PCIE Protocols NVME M.2 SSD. Support system: for Windows7/8/10/for Linux.

The installation is easy and does not require any driver software programs.

Support 2230/2242/2260/2280 type M.2 Card dimension.

Specification:

Color: Black

Port: PCI-E 4X

Data transmission speed: 6000MB/s

Expansion interface: M-KEY M.2

Suitable port: PCI-E 4x、PCI-E 8x、PCI-E 16x

Power supply mode: PCIE

Supports M.2 card size: 2230, 2242, 2260, 2280

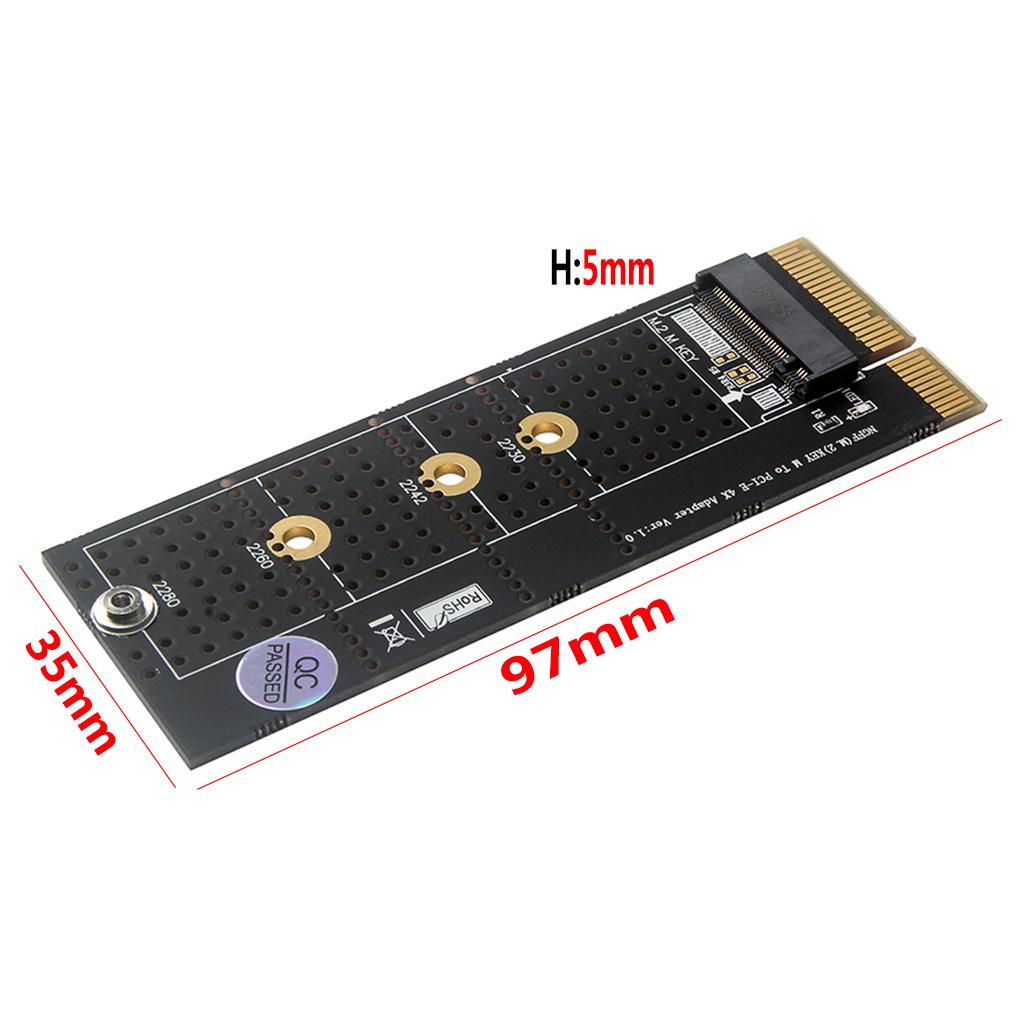

Size: Approx. 100x35x5mm/3.94x1.34x0.19inch.

Package Includes:

1 Piece NGFF (M.2) KEY M to PCI- E 4X Adapter

Note:

Please allow 1-3mm deviation due to manual measurement.(1mm=0.04inch)

Please check the details and make sure it will meet your need before purchase.
