AIMOS 2 in 1 Out DVI KVM Switch Dual Displays Support USB HUB Mouse Keyboard Audio Cable Adapter

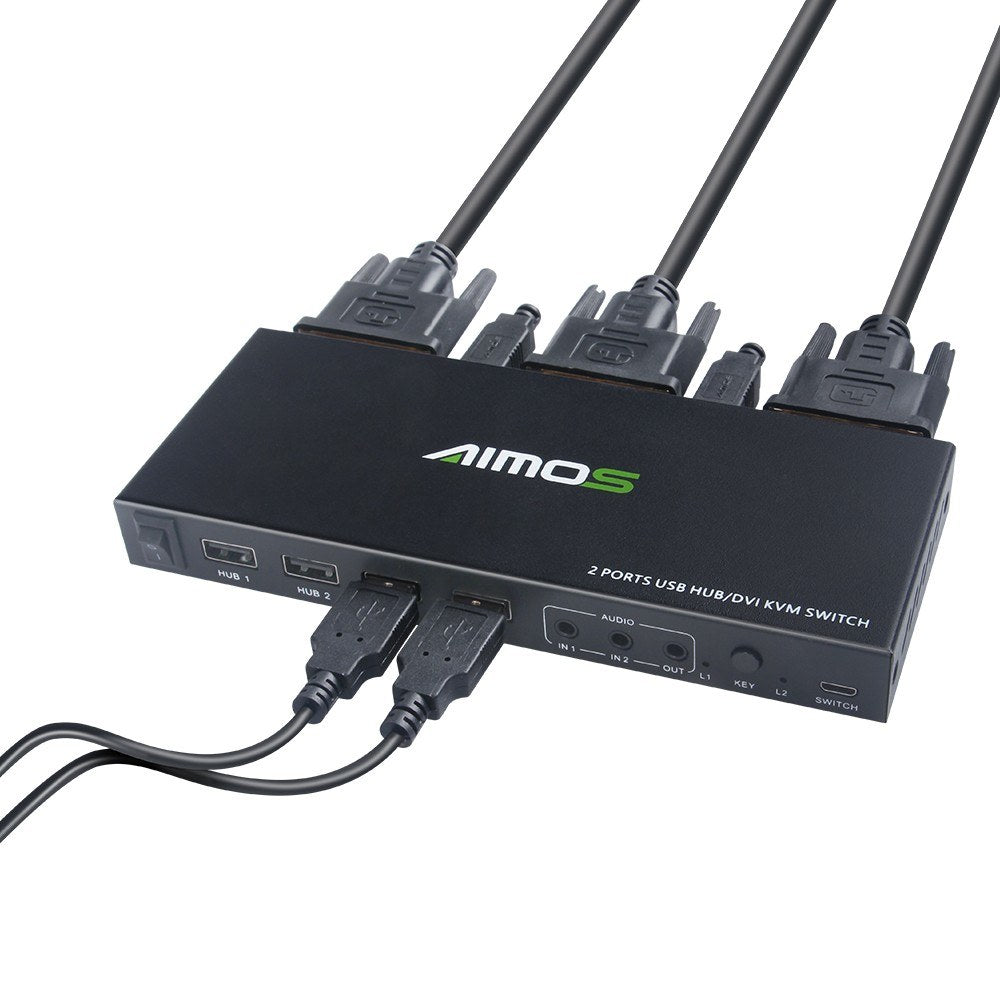

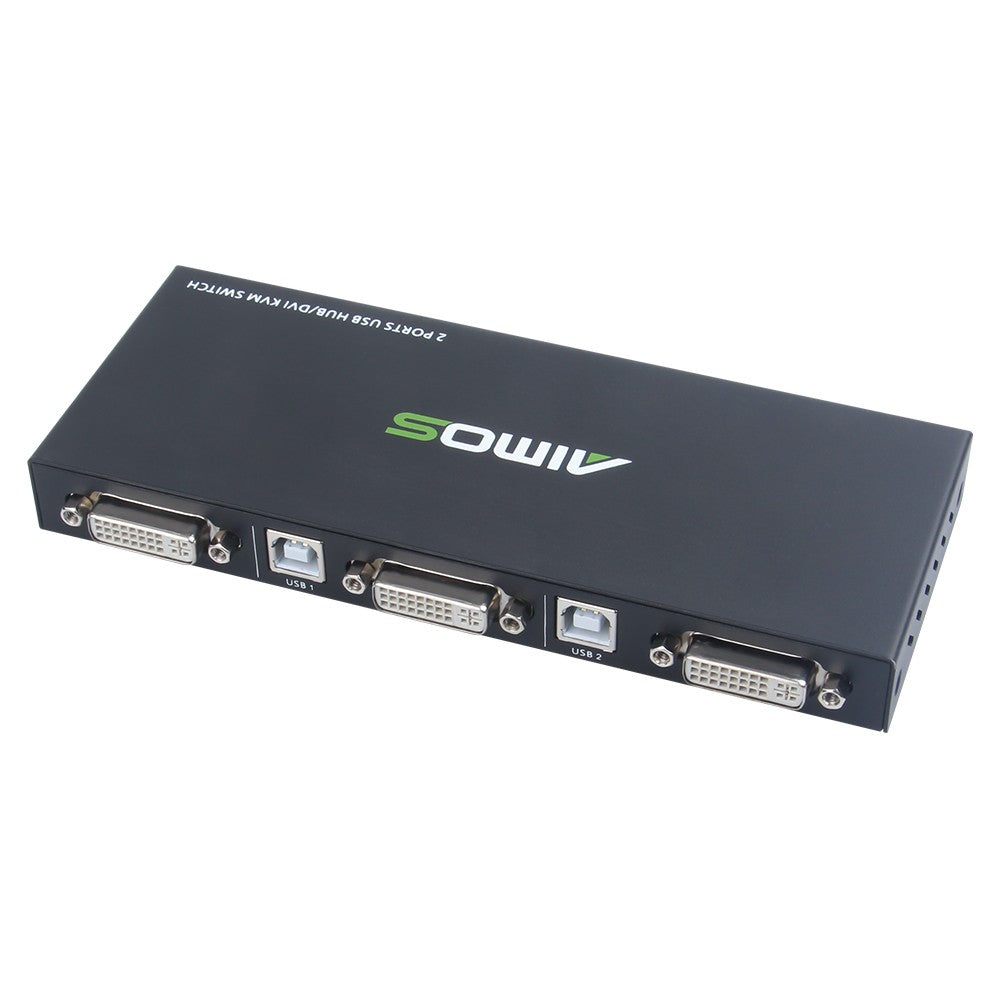

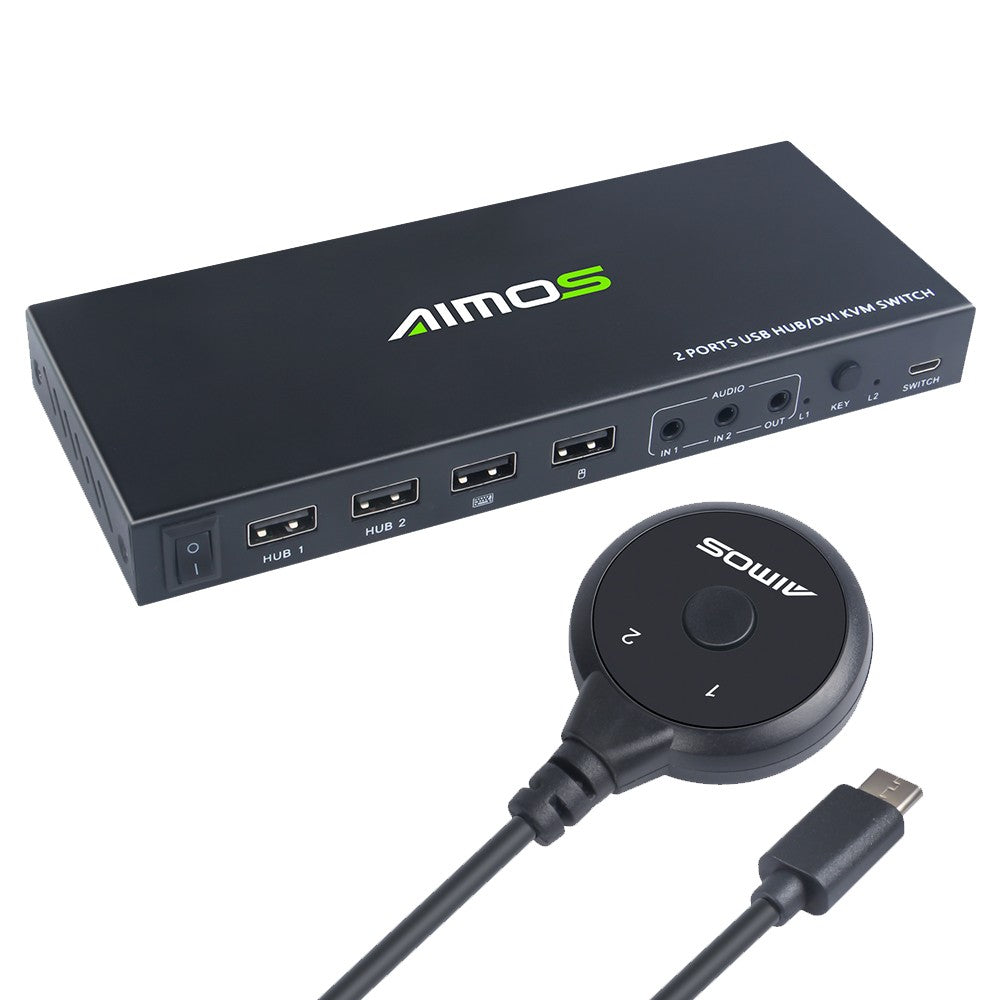

This 2 in 1 out DVI Switch enables you to share monitor, mouse, keyboard, U disk, printer, etc between two hosts, supports resolution up to 1920*1200@60Hz as well as audio in and out.

• With DVI or USB input ports plugged in 2 devices simultaneously, you can switch the display of them on the output device to fulfill your different needs
• Easy to control, just press the key on the device or the one on the desktop controller
• With USB ports, you can share mouse, keyboard, U disk, printer, etc between two hosts, no need to plug and pull repeatedly
• With this switch, free yourself from extra display and twisting cables
• It supports resolution up to 1920*1200@60Hz, offering more details and low latency when displaying. Besides, it also supports audio in and out

Specification:

• Video standards: DVI 1.0
• Maximum pixel clock: 340MHz
• Maximum data rate: 10Gbps
• Resolution range: 1920*1200@60Hz
• Connector:  DVI-D Interface
• USB interface protocols: USB2.0
• PC input interface type: USB-B
• Output interface type: USB-A
• Power supply: USB Power
• Power dissipation: MAX 2W
• Operating temperature: -5? ~ +70?
• Operating humidity: 5% ~ 90%

Package included:

• 1 x 2 in 1 Out DVI Switcher

• 2 x USB Cables

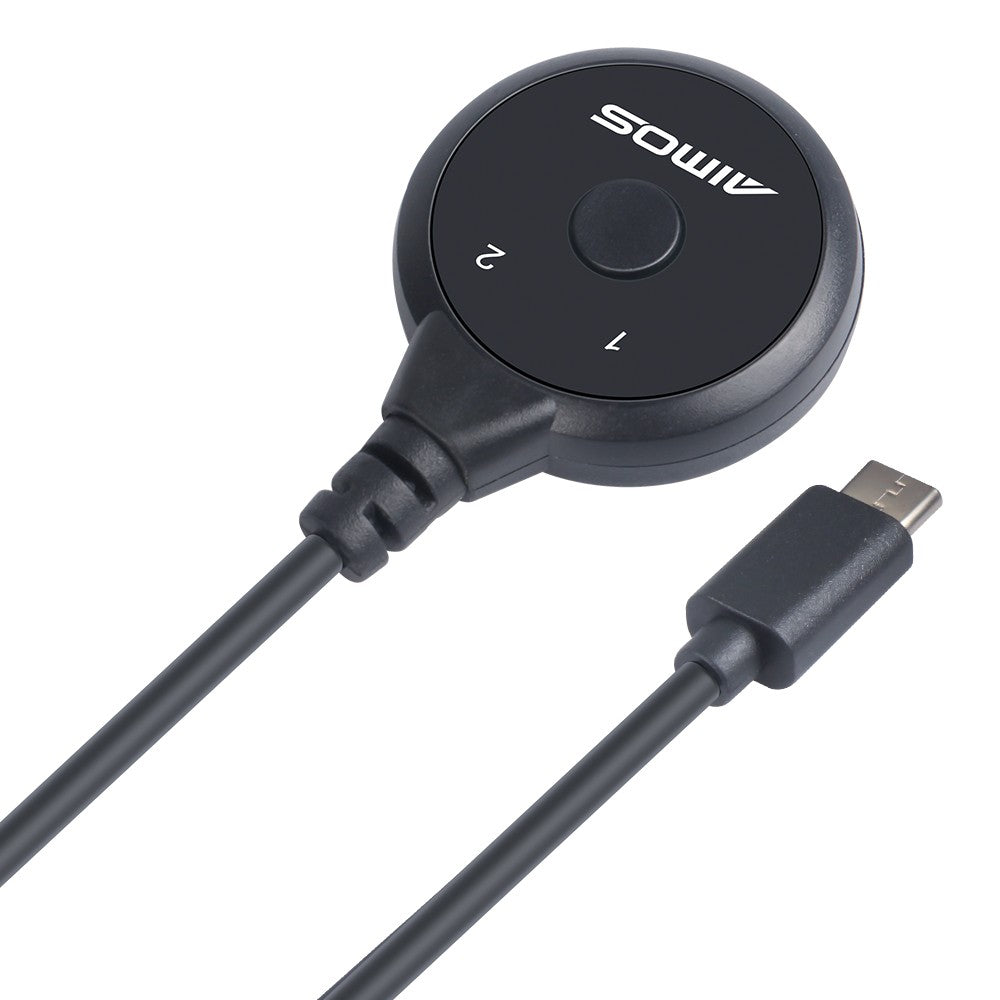

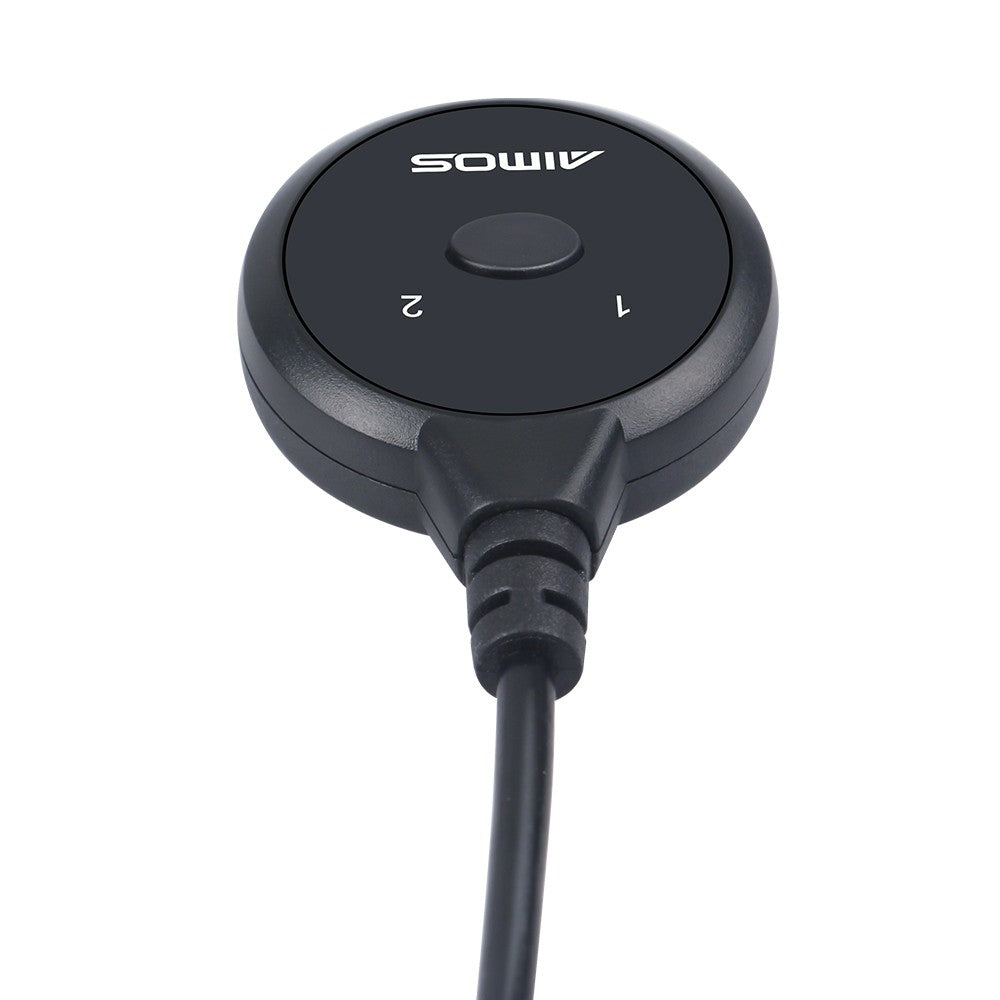

• 1 x Desktop Controller

• 1 x English and Chinese User Manual
