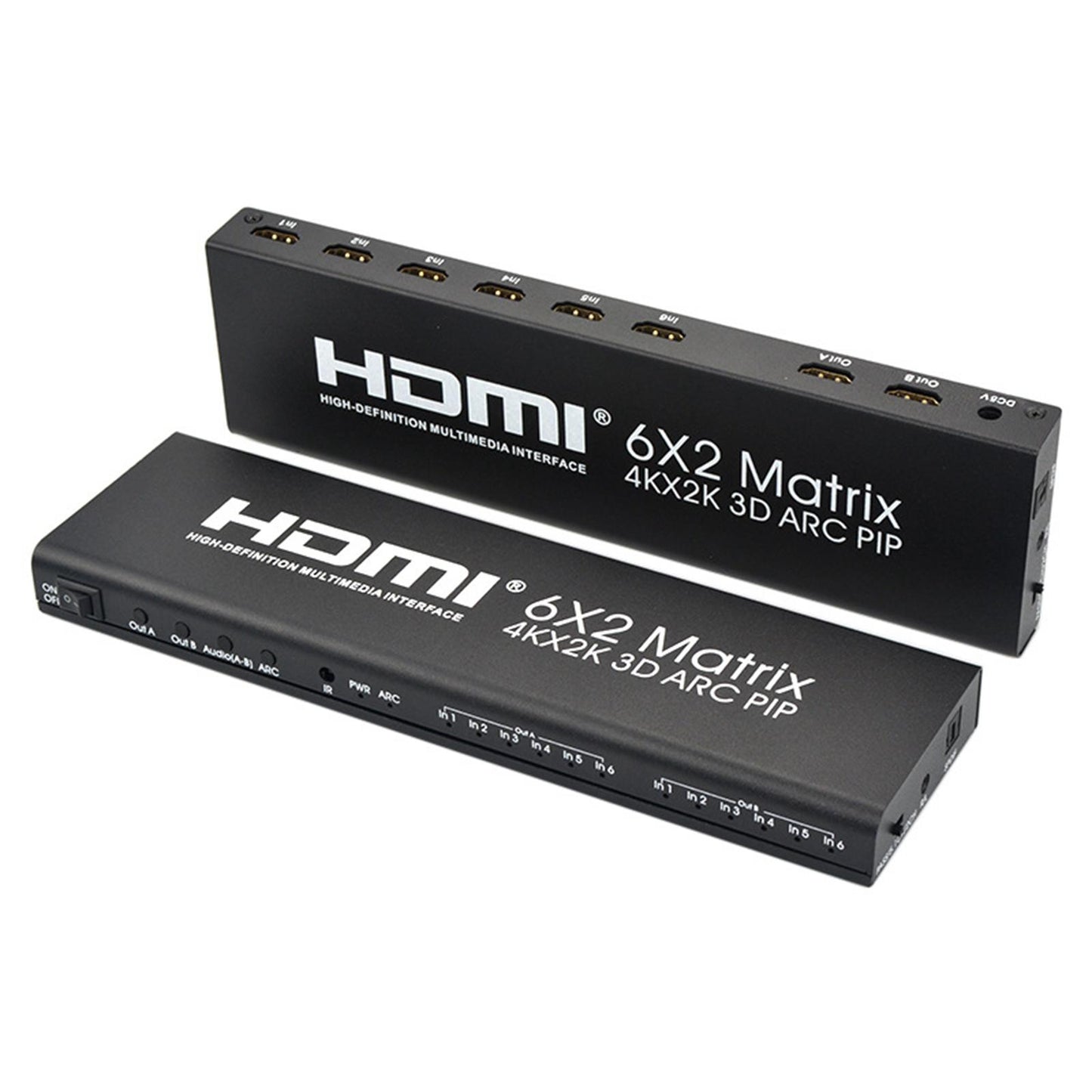

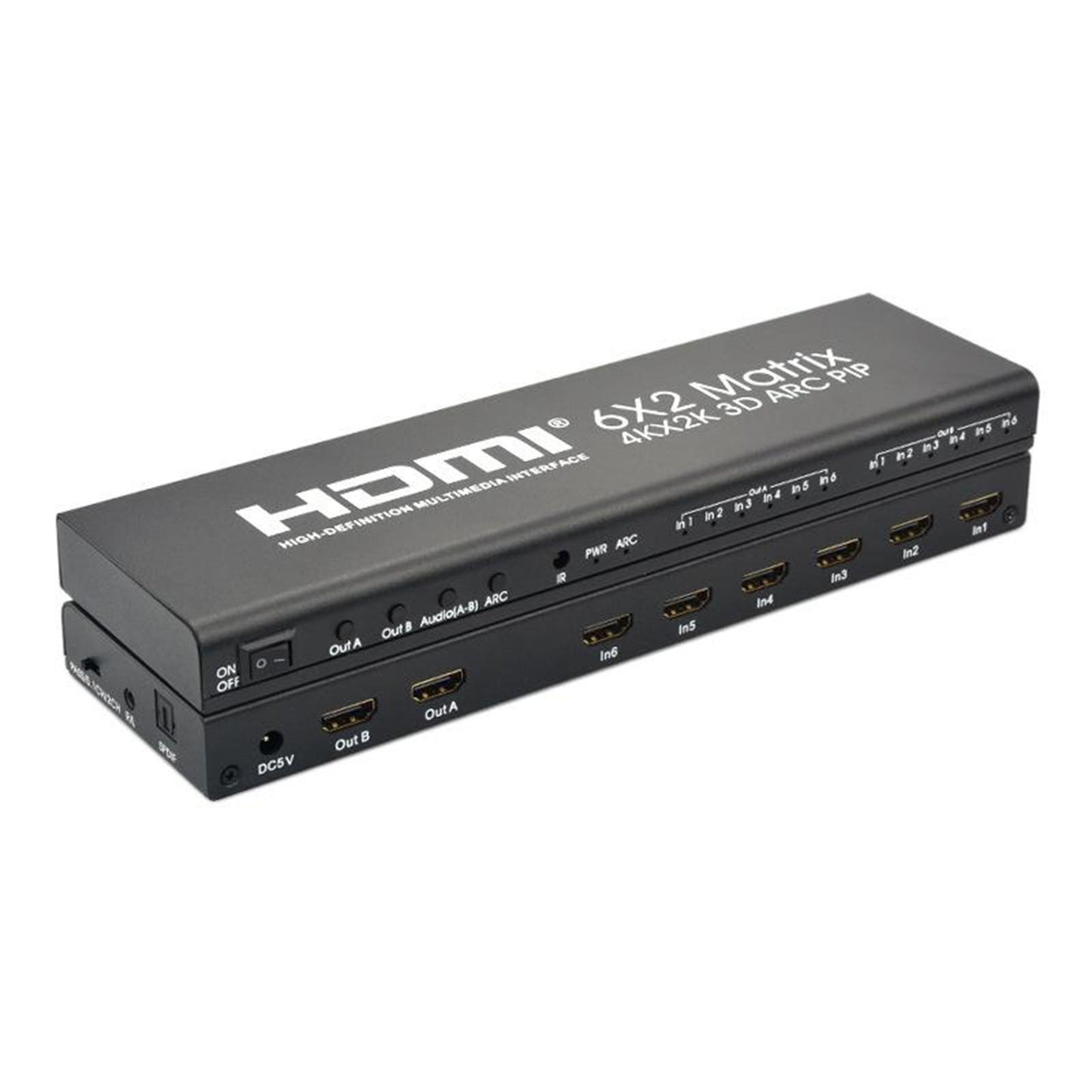

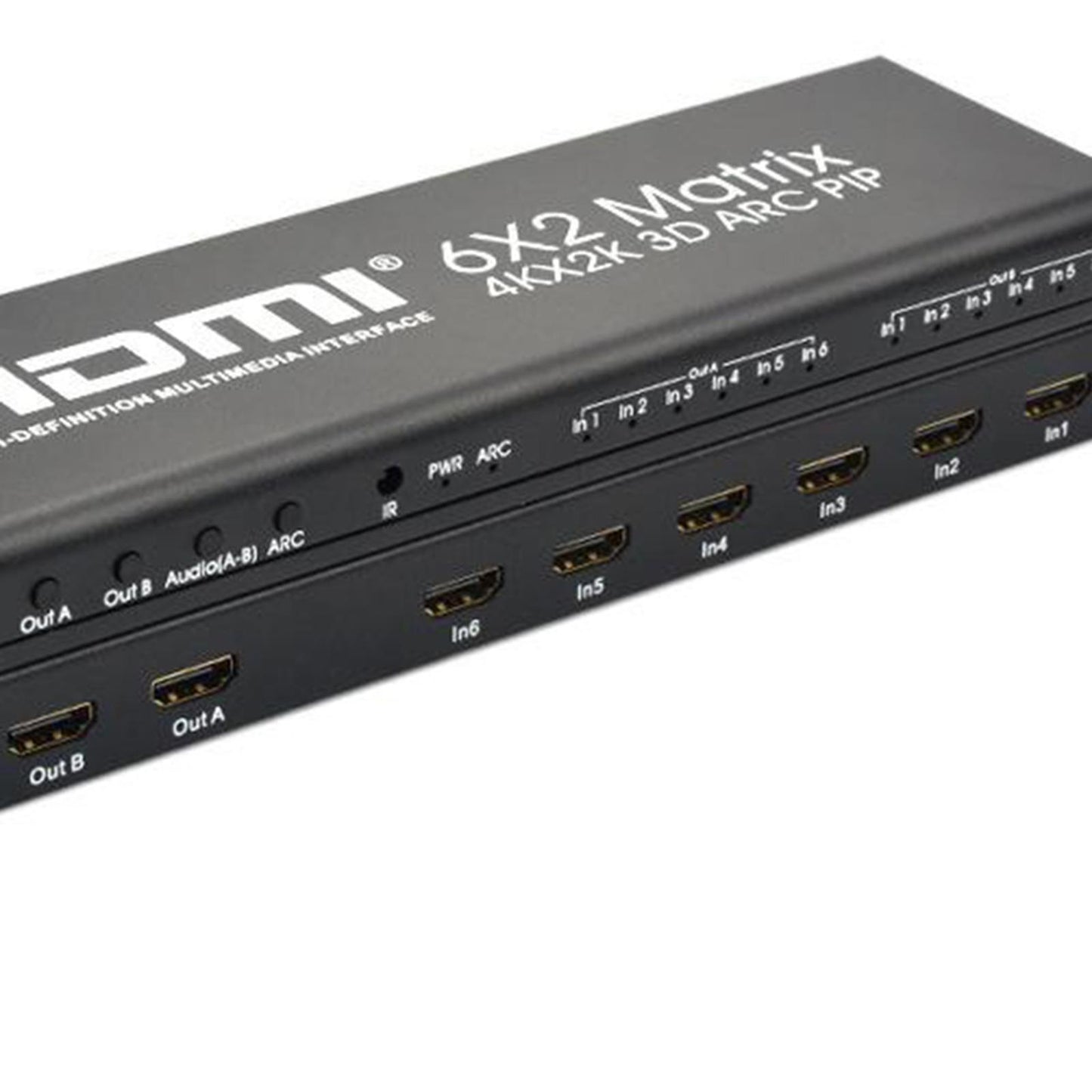

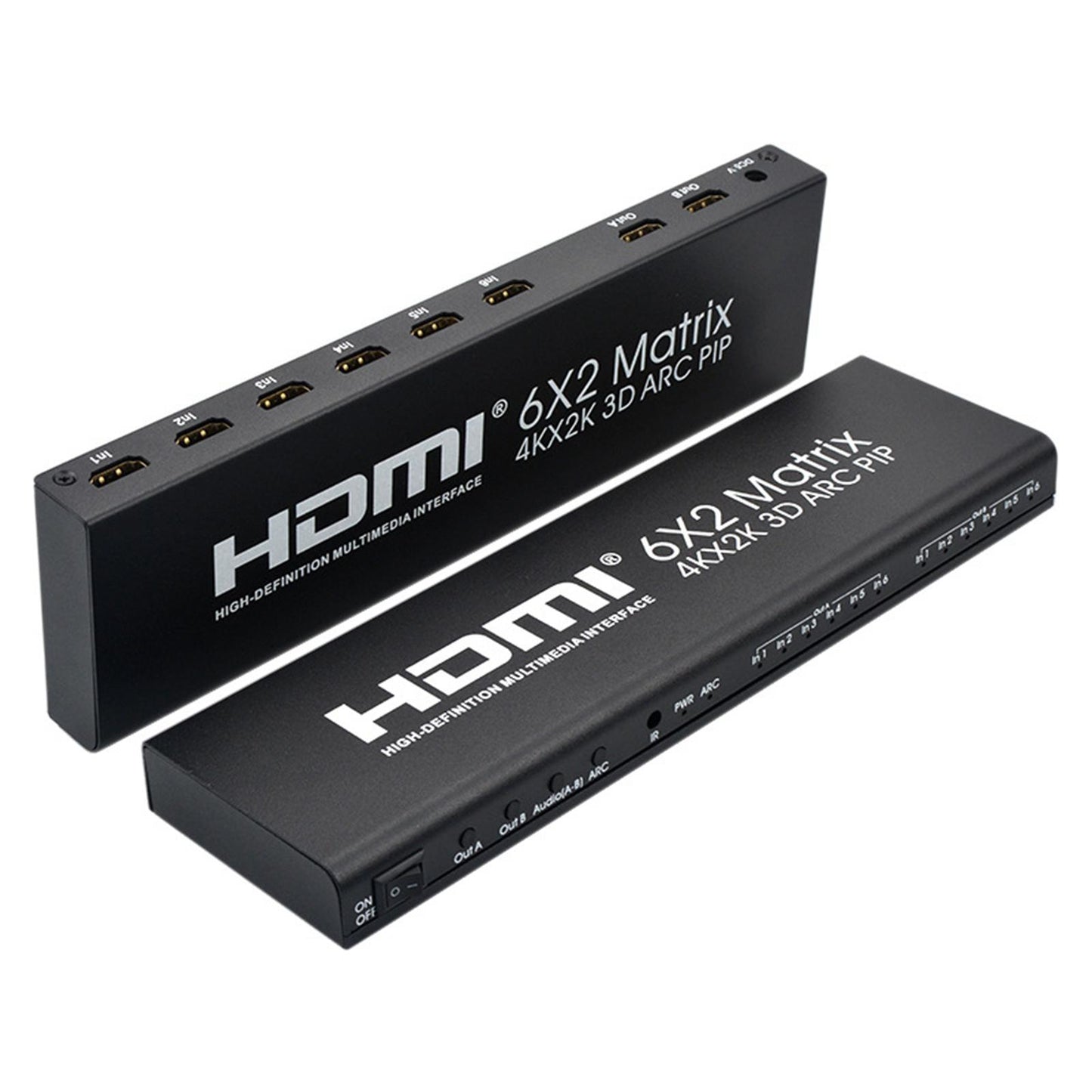

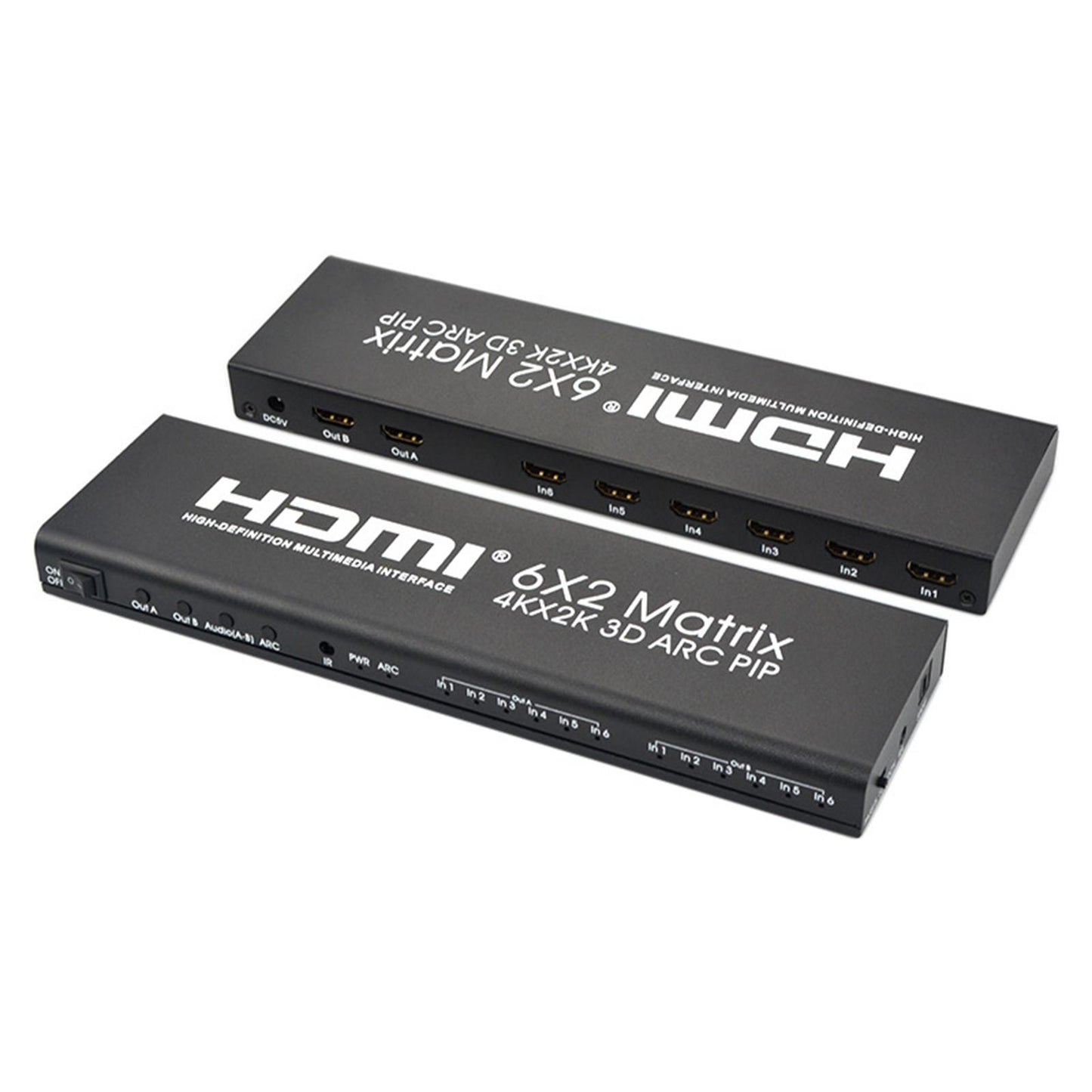

HD 4K HDMI Matrix Switch Box Switcher Splitter Converter 6 in 2 out UK Plug

Description:

This 6x2 HDMI matrix can easily switch or distribute the six input high-definition signals for display on two high-definition displays or projectors, which can display different pictures or the same picture.
This product is equipped with optical fiber and stereo output interfaces at the same time, and the output audio can be selected from two output screens through the function buttons.
This product has a picture-in-picture function. A big picture contains five small pictures, which can be activated by remote control, which is convenient for intuitive output picture selection.
This product supports high-definition 4K/30Hz resolution and is a perfect assistant for home entertainment and office meetings.
High Performance processing lossless not get stuck, efficient signal transmission ensures picture not distorted, lossless image quality transmission.

Specification:

Supports HDMI1.4b version
Supports ARC function (only OUTA support)
Supports 3D video format
Supports the highest resolution up to 4K/30Hz,When supporting the highest rate of 3.2G, the TMDS clock is 320Mhz
Supports 8/10/12 bit deep color
Supports 3.5mm stereo sound output
Supports SPDIF optical digital audio output
Supports 6 HDMI inputs
Supports 2 HDMI outputs
Supports audio EDID selection
HDMI resolution: 720P/60HZ/1080P/60HZ/4K/30Hz
Support audio format: DTS-HD/Dolby-trueHD//DTS/
Dolby-AC3/DSD
Input / Output cable length: ≤5m AWG26 HDMI standard cable
Maximum working current: 1000mA
Power adapter specifications: Input: AC (50HZ, 60HZ) 100V-240V;
Output: DC5V
range of working temperature: -15~+55°C
Operating Humidity Range: 5~90%RH
Dimensions: 255x70x21mm

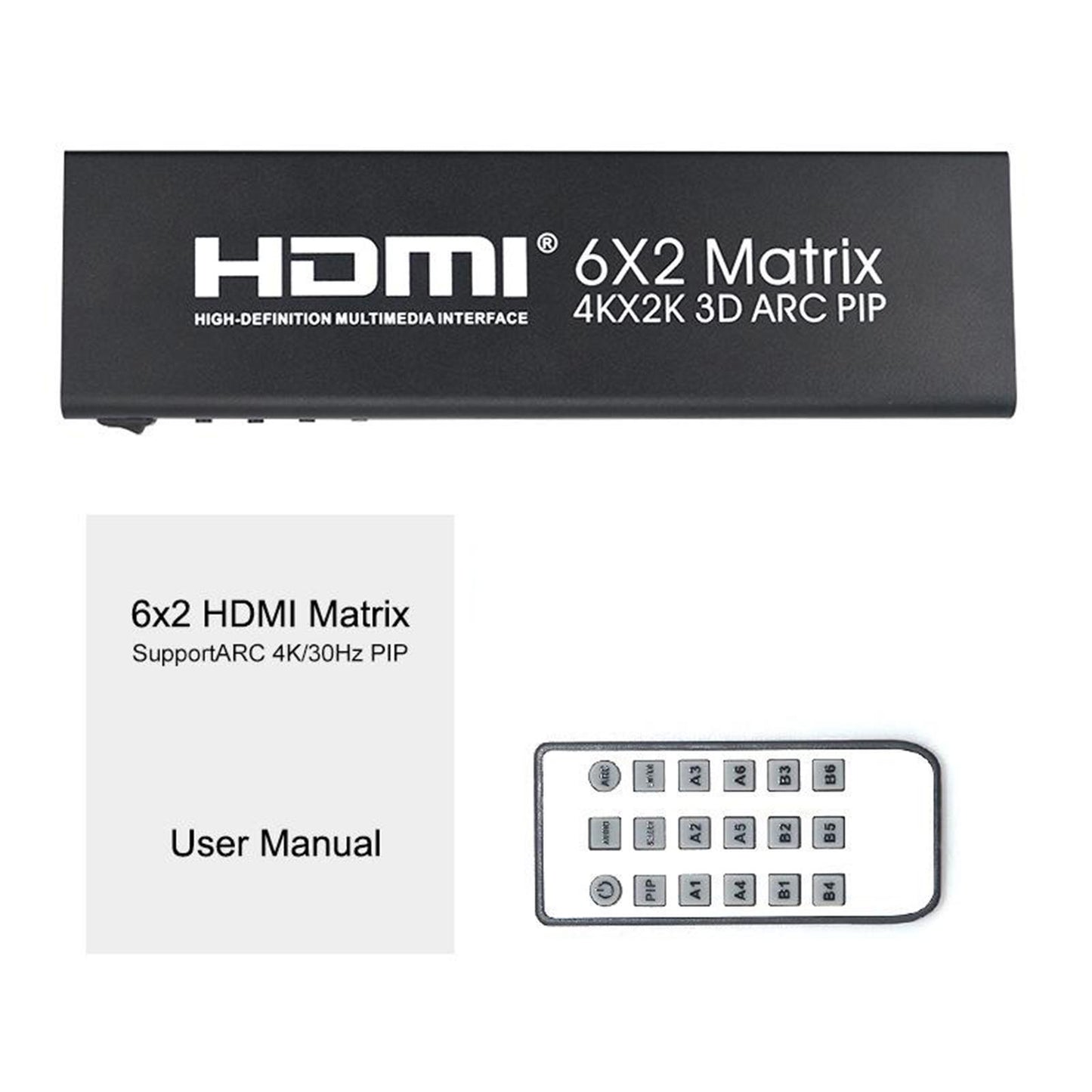

Package Includes:

1x HDMI Matrix
1x Infrared Remote Control (Not Included Battery)
1x 5V 2A Power Adapter
1x User Manual
